34. Thailand Royal Palace

Royal Palace

Transmission Facility

33. Spain Bus

Bus roof

roof

32. Spain

Golf clubhouse

Magaracity

31. Refrigerated Warehouse Test in Philiippine

Attic temperature difference

136.4°F (58℃) to 102.7°F (39.3℃)

30. External Hut Test in India

The results of Test construction showed -9°F (-5℃) average temperature difference.

105.8°F (41℃)  to 96.8°F (36℃)

Huts in India

Month :        Uncoated                  Gaina Outside coated        Temperature difference

June :           120°F (48.9℃)          115.2°F (46.2℃)               -4.8°F (2.7℃)

July :            103.1°F (39.5℃)        95.9°F (35.5℃)                -7.2°F (4℃)

August :        106.2°F (41.2℃)        98.4°F (36.9℃)                -7.8°F (4.3℃)

September :  102°F (38.9℃)           95°F (35℃)                     -7°F (3.9℃)

29. Gas Station

The following is an article about a gas station in Japan that combines creative architecture and eco-compatible technology. This design would be an ideal housing solution. This gas station is built in a tsunami zone, making it a viable option for the coastal communities in the Northwest.

SHINKENCHIKU:2013 11

Satoumi Gas Station

Region :  Kesennuma, Miyagi Prefecture Japan
Application : Inside

http://gaina.ecocoro.biz/images/topic68.pdf

28. Refrigerated Warehouse (MASKAR)

Qatar Friendship Fund supported a $24.3 million multifunctional fish processing plant.

Maskar

Region : Onagawa Miyagi prefecture, Japan
Gaina Applied : Roof & Outside wall

Building facing the Onagawa Bay

Received Good Design Award 2013

This well-known building is known by the slogan "Catch pikes in the fall of 2012." The town Fisheries of Onagawa were planned as a construction innovation. They included a completely refrigerated warehouse.

Designed for Tsunami protection
When a Tsunami hits the building, ALC panel of the first floor out and only pillars remain to minimize the power of the tsunami. Gaina protected the second floor which had 6000 tons of refrigerated storage capacity

2nd floor Refrigerator room

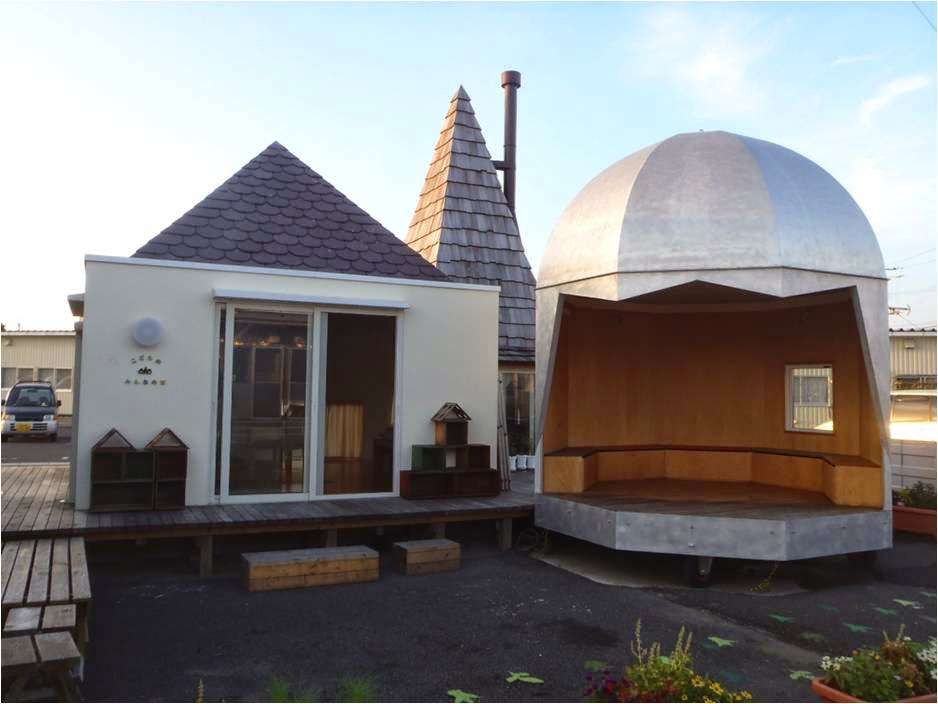

27. Childre's Community Center

Structural Reinforcement

Kodomo no Minna no Ie

Region : Higashimatsushima, Miyagi Prefecture Japan
Designer  Toyo Ito & Maki Onishi

Inside

Gaina Application - Exterior & Interior


Remarks
Structural reinforcement against earthquakes
 Architectural hardware sponsorship offer

26. Gas Holder (9°F dropped )

To suppress the temperature rise Butane Gas in the tank
Exterior Coat : 9688 ft²  (900 m²)
Color : N-95

Before

Temperature dropped 9°F (5°C) on average.

25. Chemical Tank (temperature dropped)

Chiba-shi Chiba prefecture, Japan

Bullet Tank

Control raising temperatures in chemical holding tank.
Exterior Coat : Bullet Tank 1076 ft²  (100 m²), Tank top 1776 ft²  (165 m²)
Color : N-95

Tank

Result: Levels stayed within safe perameters once coated with Gaina.

Tank Top

24. Chemical (coagulant) Tank

Shimonoseki-shi Yamaguchi prefecture, Japan

Coagulant tanks

Purpose: Control rising temperatures in coagulant storage tank in a water purification plant.

Top

Exterior Coat : 1292 ft²  (120 m²)
Color : 62-80H

23. Gas Holder

Imabari-shi in Ehime Prefecture, Japan

LP Gas Holders

To maintain a constant temperature of Liquefied Gas in the holder as much as possible.
Exterior Coat : 9042 ft²  (840 m²)
Color : 42-80D

22. University Joint Research in Tokyo Japan

Tokyo Metropolitan University

Energy Savings:
23% average throughout the year



Overview
Cost: $2 Million
Application: Roof, Outer & Inner wall
Duration: 4 years

Two identical homes were constructed. For comparison Gaina was applied to one home. The data on heating and cooling costs on both homes were collected and compared. The home with Gaina applied on it showed a significant decrease in energy costs.

Interior coating

Cooling Period (air conditioning)
   June 2nd to September 21st (112 days)
   Summer Months - 26.7% reduction

Heating Period
   October 28th to April 14th (169 days)
   Winter Months - 35.2% reduction

One must take into account the moderate temperature of the locale.
Please note, this experiment was conducted in a shaded area. If a test was conducted in a hot climate with direct sunlight, the effectiveness of the roof application would be more quantifiable.

Top Share 4 Consecutive Years in Japan

These charts show the overall shares in the eco-coating category.

Gaina is the product from Nisshin Sangyo Co. of Japan.

Nisshin Sangyo Co. （日進産業）has maintained its top share for the fourth year in a row.

21. Tsunami Victims Community Center

Symbol of Reconstruction Assistance

Home for All

"Home for All" has been plan and build as the place Tunami victims get together casually incorporates suggestions of local.

Interior

Region : Rikuzentakada, Iwate Prefecture, Japan

Gaina Application : Exterior & Interior
Color : White (N-95)


The 13th International Architecture Exhibition Venice Biennale
"Home for All" design won the Golden Lion

20. Boarding Bridge temperature drop

Passenger Boarding Bridge

Application - Roof
     Region - Tokyo Japan
     Color - White (N-95)

Results
     Surface temperature was significantly reduced

19. Auto Manufacturing Plants improve energy efficiency

Before

After

Applied

 Roof - Inside
 Color - White (N-95)

No Applied

Applied Gaina

Results - Surface temperature was significantly reduced
     130.6 °F to 112.3 °F
       (54.8℃ to 44.6℃)

18. HVAC saving $470 a month

Application - Restaurant HVAC units in Japan

Saving per day - 974 kWh > 898 kWh

 Monthly savings - $470 (47,000 yen per month reduction)

17. Smoking room improves

Nerima Ward Office in Tokyo

Ward Office Building

Smoking Room

Overview

     Application - Interior

     Region - Tokyo Japan

     Color White (N-95)

Results

     Gaina was applied to 7 of 11 smoking rooms at Tokyo's Nerima Ward Office.

     "The smoking room environment really improved!"
     and other positive comments were received from ward residents.

     In particular, the 20th floor of the main building,
     where an observation lobby and restaurant are located,
     has become renowned as a place where all visitors can now relax and enjoy the scenery.

16. Top of Airport Shuttle: Lower the temperature

Kansai Airport Wing Shuttle (AGT) in Osaka prefecture Japan

Airport Shuttle

The roof of the Shuttle was treated with Gaina.

Gaina was chosen as a new technology to enhance air-conditioning efficiency and to enable energy savings.

Results
     Temperatures under the roof have decreased from 134.6°F (57℃) to 116.6°F (47℃).

15. Museum: Safety of the national treasure

Todaiji Museum

Overview
     Application -  Interior
     Region - Nara Prefecture Japan
     Color - White (N-95)
Purpose
     Safety of a national treasure
     Because of enormous air conditioning energy usage,
     need to reduce energy consumption by increasing the thermal insulation
Results
     Preserving national treasures requires a large amount of energy for HVAC.
     This case sought to reduce energy consumption by increasing the amount of thermal insulation.

As a material that avoids condensation, Gaina has been carefully evaluated in-house for several years, and we have a high regard for its insulation properties, its ability to resist dirt, and its design characteristics. (Comments from chief designer)

14. Car carrier deck reduces 49°F

MOL Car Carrier

Overview - Temperature reduction for car carrier deck
     Applied - Mitsui O.S.K. Lines (MOL)　
     Region - Yamanashi Prefecture Japan
     Color - white (N-95)
Results
     Gaina was formally employed in covering the deck of a large car carrier.
     Lower deck temperature decreased from 149°F (65℃) to 100°F (38℃)
     The internal work environment had been greatly improved

Previously workers were exposed to large amounts of UV. In one week, the thermal environment changed drastically, and after a careful examination of the product it was decided to make it a standard specification. (Comments from MOL supervisor)

13. 20% of Energy saving of a Grocery Store

Grocery Store

Grocery Supestore

Overview - Store Roof
     Installation - 2011 July-August
     Area - Fukushima Prefecture Japan
     Application - Roof 114,097 ft² (10600㎡)
Appearance - Roof structure
      Galvalune, Air layer 39 in (1000mm), Glass wool 3.9 in (100mm), Drywall 0.37 in (9.5mm)
Effect
     Energy saving effect about 20% per year
     An annual economic effect of 7.1 million yen. (13yen/kWh equivalent)

Electric consumption

Before - Blue
After - Orange

12. Factory Roof Temperature Comparison

Industrial Factory Roof

Overview - Surface temperature comparison for factory roof
     Installation - 2010 September
     Application - Corrugated metal roof  30,548 ft² (2838㎡) Folded-plate roof
     Region - Yamanashi Prefecture Japan
     Color - White (N-95)
Results
     Surface temperature was significantly reduced

Not coated  134.6~143.6°F (57~ 62℃)
Coated         95~104°F (35~40℃)

Coated (front) & Not Coated (back)

Comparison of Temperature

11. Attic temperature reduced 35.1°F

Commercial Office & Warehouse

Front

Roof

Overview - Coating on office & warehouse roofs
     Installation -  2010 June
     Application -  Metal plate roof 12,917 ft²（1200㎡）
     Region -  Okinawa Prefecture Japan
     Color -  White (N-95)

Results
     Heat disposition changed
     Cooled down immediately after air conditioning turned on


Attic temperature reduced in Summer
     High: -35.1°F (-19.5℃)
       131.9°F to 96.8°F
         55.5℃ to 36.0℃
     Normal:  -10.6°F (-5.9)
        98.6°F to 88°F
        37.0℃ to 31.1℃

Weather 2010
     June 27th    High: 89.6°F (32℃)   Normal for day 84.2°F (29℃)
     July 17th     High: 90°F (32.2℃)   Normal for day 84.7°F (29.3℃)
